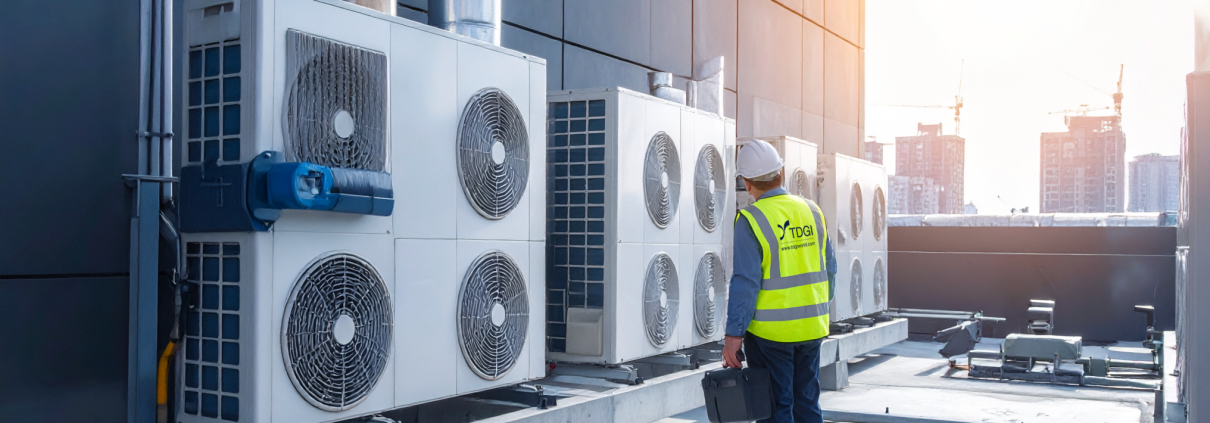

Mandatory inspections of technical systems in buildings

Technical systems (e.g. air conditioning, domestic hot water, etc.) installed in commercial and service buildings are subject to mandatory periodic inspections. This requirement is laid down in Article 15 of Decree-Law No. 101-D/2020, which came into force on 1 July 2024. The main objective of these inspections is to assess the operation of these systems and identify specific measures to optimise their operation, in terms of both their functional performance and their energy consumption.

Which technical systems are covered?

This requirement applies to the following types of technical systems: chillers, boilers, heat pumps, rooftop units, VRV units, solar thermal systems and building automation and control systems (BACS). This requirement applies only to systems with a rated power output of over 70 kW.

Frequency:

  • The audit is carried out every four years on all equipment with a power rating between 70 kW and 250 kW. For equipment with a power rating above 250 kW, the audit is carried out every two years.

Scope:

  • The inspections focus on the operating, monitoring and maintenance conditions of the technical systems concerned.

Report:

  • TDGI issues a report setting out all the findings of the audit carried out, as well as recommendations for rectifying any anomalies detected. This report is provided to the client, and a copy is also sent to ADENE in accordance with the legal requirement.

Apart from complying with legal requirements, are there any other benefits?

Yes. During inspections of air-conditioning systems, measurements are taken to assess in detail the actual operating conditions of the technical systems. This makes it possible to identify potential areas for improvement in the energy efficiency and functionality of the equipment, thereby yielding tangible financial benefits and helping to prevent future operational failures.

Do you have any questions about mandatory inspections? Contact us: www.tdgiworld.com | TIS Services: geral@tdgi.pt

Supply and installation of HVAC systems

ferreiras madeira tdgi

ferreiras madeira tdgi

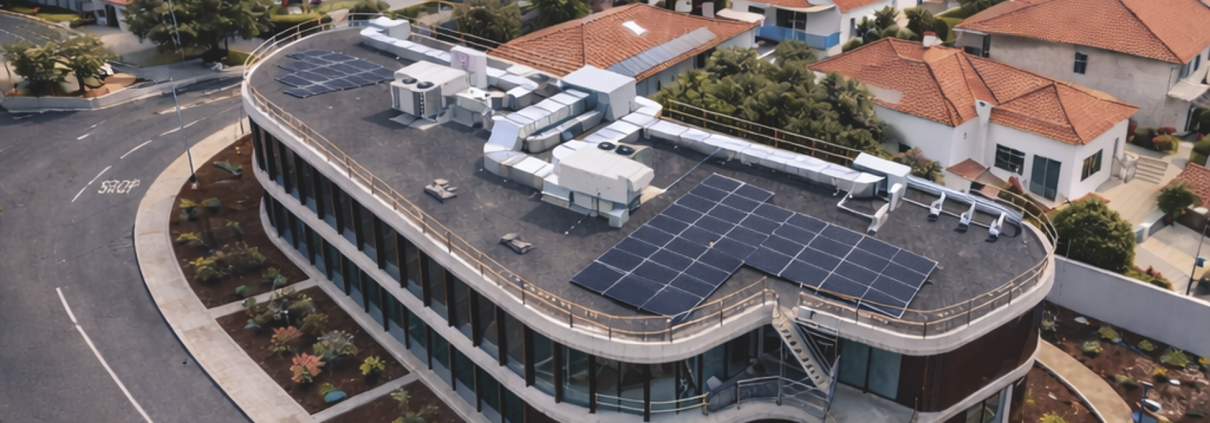

TDGI supplied and installed HVAC systems at the Ferreiras Showroom in Funchal.

The solution included rooftop units for the retail areas, VRF systems in the offices, ventilation through heat recovery units and fresh air fans, mechanical pressurisation in the vertical ducts and a smoke extraction system in the basement.

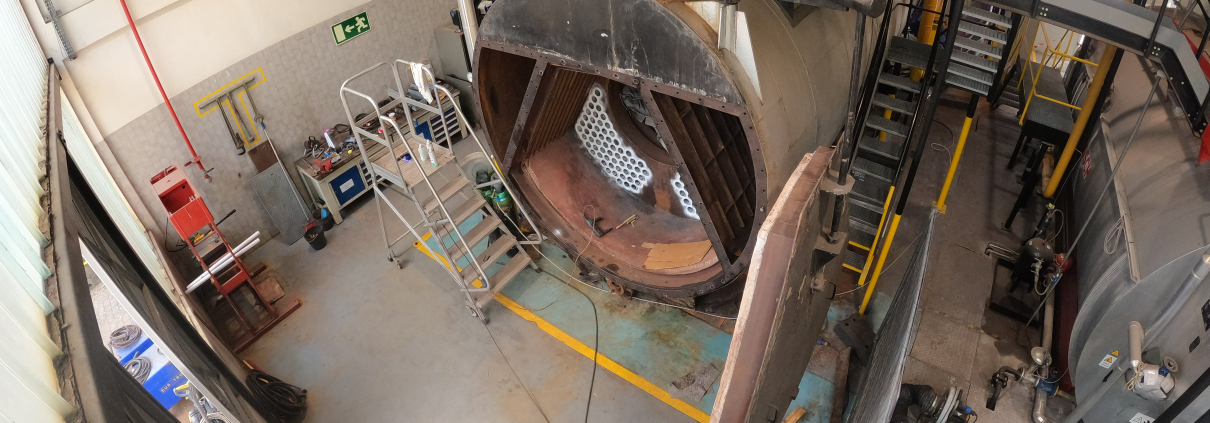

Steam Generator Revamp

revamp indústria projetos industriais

revamp indústria projetos industriais



Como parte das ações de melhoria contínua na manutenção e com o objetivo de prolongar o ciclo de vida dos sistemas críticos, para a continuidade de negócio na Fábrica da Tabaqueira, em Albarraque, a equipa da TDGI Industry realizou a beneficiação do Gerador de vapor Nº1.

A intervenção incluiu a substituição dos tubulares e o revamp geral ao Equipamento.

Esta operação teve como principais vetores, a fiabilidade e a eficiência energética, tendo exigido a coordenação e gestão de vários parceiros e equipas internas, num total de 380 horas de trabalho.

O foco na segurança, na fase de planeamento e execução, foi fundamental para que os trabalhos tenham decorrido sem registo de incidentes.

Concluída a intervenção, foi reposta a condição-base do sistema de produção de vapor, contribuindo para o reforço das condições de continuidade de negócio do Cliente.





TDGI joins BCSD Portugal

TDGI joins BCSD Portugal – Business Council for Sustainable Development, a network that brings together leading companies in sustainability and innovation.

This integration was supported by Tabaqueira, which shares our ambition to strengthen the value chain through responsible practices and innovative solutions.

By joining, we are reinforcing our commitment to continuous improvement, collaboration with key players in the sector and contributing to a more sustainable future.
